Deep Well Submersible Water Pump

DPC Submersible Solar

Reference Price: USD-200-300/unit, M.O.Q = 1pc(s)

On Sales - Deep Well Submersible Water Pump

For international market and all voltage ranges. Customizable at our factory. And Price negotiable. OEM and brand labelling business could be discussed.

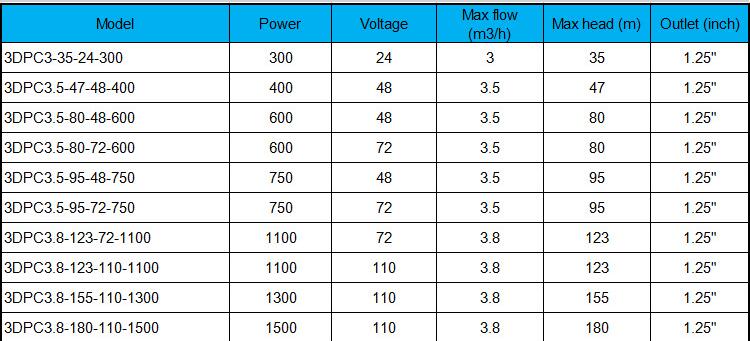

Specifications
Power (kw): 0.3, 0.4, 0.5, 0.6, 0.75
Flow rate (m3/h): 1, 2, 3, 3.5, 5.2 etc.
Pump head (m): 15-90m or customized
Rated voltage: 24 / 4 / 72 /110V
Price range: US$ 200-300/unit

DPC Submersible Solar

Product Name: Deep Well Submersible Water Pump

Category: Fluid Handling, Water Pump

Exwork: USD200-300/unit

M.O.Q = 1pc(s)
Stock availability: No
Lead-time: 10 days
Discount: available if the Order > 1 units

Product Advantages:

1. Permanent magnet brushless DC synchronous motor: 15%-20% increase in efficiency, saving energy and reducing the amount of solar panels
    2. 304 stainless steel shaft
    3. Copper water outlet, copper connection, copper oil cylinder
    4. Japan NSK bearing, the life is extended by 3-5 times
    5. Double bearing base, which can withstand great axial pressure
    6. Alloy mechanical seal, long life and reliable work
    7. The motor coil uses the centralized winding of the automatic winding machine to improve the efficiency of the motor. Solar pumps in other factories are mostly hand distributed windings.
    8. Intelligent water shortage protection: the program will automatically stop when there is no water in the well, and it will start automatically after 30 minutes
    9. MPPT controller.

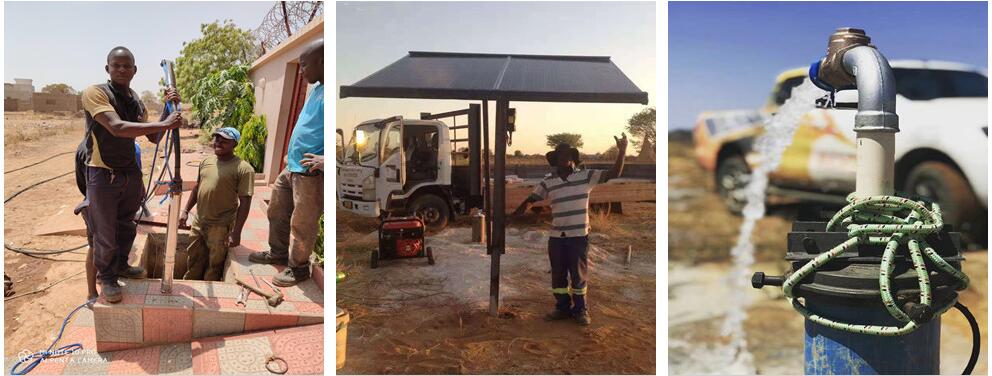

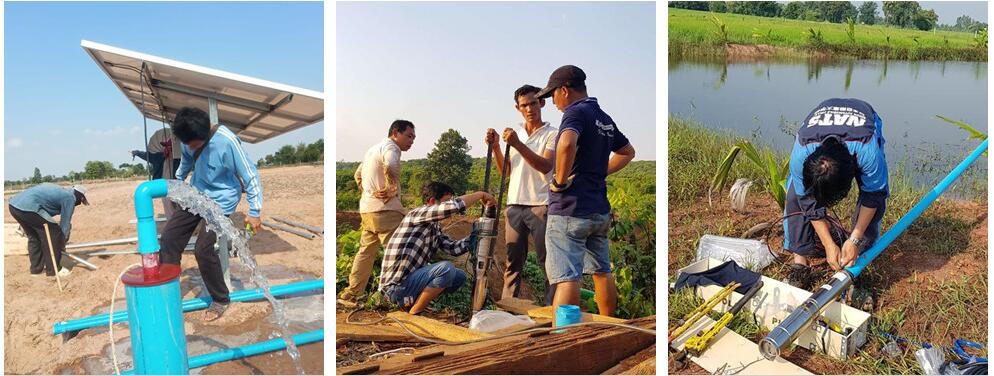

Application Cases
