Frp Vessel Tank,Frp Pressure Vessel

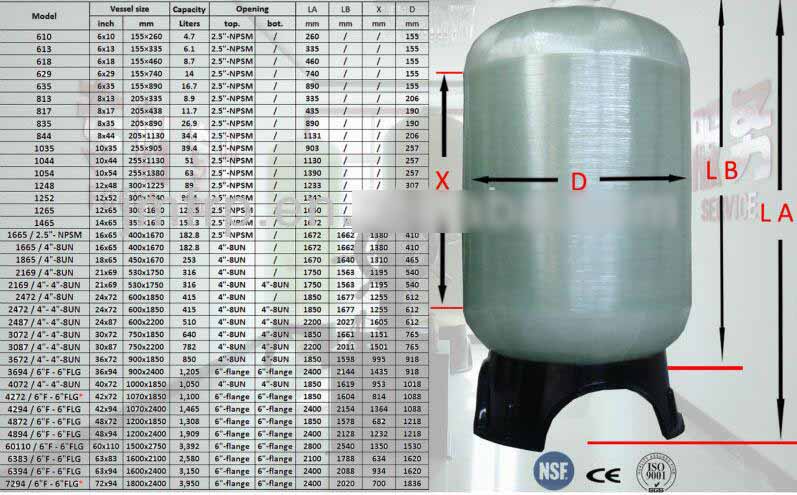

Overview Diameter dimension: From 6" to 83" inch     ( 155mm to 2100mm)

Specification

A) Material:

(a). inner shell – Polyethylene (PE) seamless one-piece tank liner

(b). Outer shell – Continuous strands of fiber-glass with high strength epoxy resin

(c). Bottom base – FRP reinforced tripod base

(d). Opening – 4” precision injected model with threaded opening for 21 ", 24", 30 ", 36" diameter tanks (e). Opening – 6 "Aluminum flange (anti-corrosion coating) opening for 36”, 42” ,48”, 63” diameter tanks

B) Working Pressure:

(a) ≤1.0MPa(150PSI)

C) Working Temperature : ≤49°C

D) Maximum Vacuum : 127mmHg(5"Hg).

E) Maximum Temperature : 40C (104F)

F) Certificates: CE ;NSF ; ISO9001 etc.

G) Media :  water

H) Warranty:   3 years

Application:
All feed water and waste water treatment application, included multi-media filter and softener.

Packaging Details:

1.Winding with the crashworthy foam

2.Packed with the double deck carton

3.Using the pallet for the flange tanks

Delivery Detail: 3~7 working days
