Portable solar seawater desalination system (reverse osmosis equipment) for ships, yachts and islands
1. Product Introduction
As the content of seawater is too high, that can not be used directly, there are mainly two methods to desalinate seawater, distillation and reverse osmosis.
Distillation is mainly used for super-huge type seawater desalination and heat energy rich area, energy consumption is very high.
Reverse Osmosis is very widely applicable, low energy consumption and high desalination rate, so it’s widely used.
We use the international best quality of seawater RO membrane. The membrane’s salt removing rate is very high, with stable performance, safe and reliable.
The HP pump we used is the international brand which is specialized in seawater desalination, with high and low pressure protection device, ensure the safety and reliable of the equipment.
The treated water quality meets the national life drinking water quality standards (GB5749-85), do not add any chemicals, can be used for direct drinking, fresh and sweet.
For the portable use, reliable water, cheap price etc., after a long time of design and practice, we integrate the reliable technology and advanced technology, make our equipment stand out!
From here on, you will experience the different use feelings.
2. Structure Function (just for reference)
Structure List |
No. | Name | Function Introduction |
1 | Automatic run button | On or off the equipment |
2 | Flush button | Flush membrane element |
3 | conductivity meter | On-line monitoring water quality |
4 | regulating valve | Adjust the output water flow |
5 | Self-priming pump outlet pressure gauge | Show the output water pressure of raw water pump |
6 | RO inlet gage | Show the output water pressure of HP pump |
7 | Flow meter | Show output water flow |
8 | RO membrane | Filtrate seawater, permeate the drinking water |
9 | Clean water outlet | Clean water connect to the designated point |
10 | concentrated water outlet | concentrated water discharged to the designated point |
11 | Pre-filter housing | Further filtrate raw water, protect RO membrane |
12 | Cartridge filter Housing | Filtrate raw water, protect HP pump |
13 | UV sterilizer | Disinfect the outlet water |
14 | UV pressure-head switch | Control and protect equipment |
15 | raw water pump | Provide pressure for pre-treatment and HP pump |
16 | HP pump | Provide the necessary pressure for RO system |
17 | Machine trundle | Convenient to move |
18 | Adjusting Leg | Fixed, adjust the equipment |
19 | Post carbon filter | improve taste |

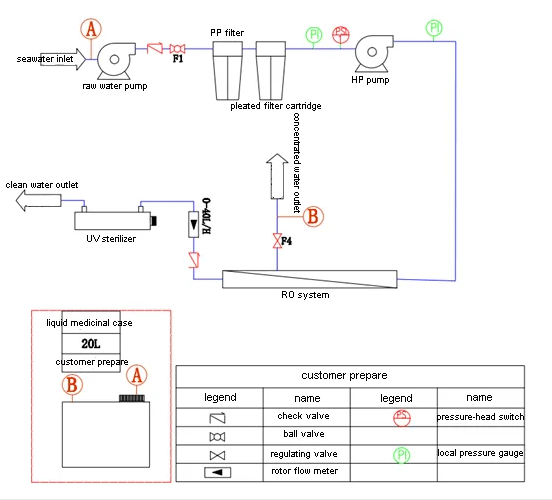

Attach: process flow diagram
