In-Depth Analysis of Water Treatment Membrane Technologies (Ultrafiltration, Nanofiltration, and Reverse Osmosis)

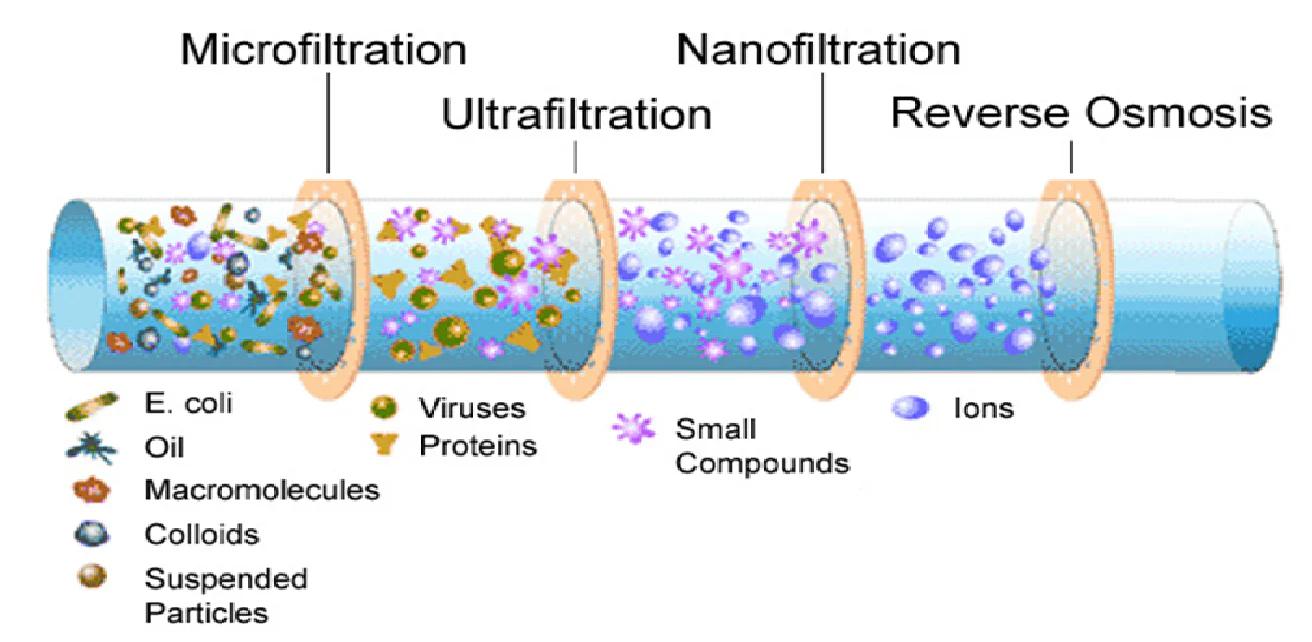

Comparison of Nanofiltration, Reverse Osmosis, and Ultrafiltration Membranes

• Nanofiltration (NF) Membranes:
  Nanofiltration membranes can retain substances at the nanometer scale (0.001 microns). They work between ultrafiltration and reverse osmosis, typically filtering organic compounds with a molecular weight range of 200-800. Their ability to retain dissolved salts varies from 20% to 98%, with lower removal rates for monovalent ions compared to divalent ions. NF is primarily used for removing organic matter and pigments from surface water, hardness and radium from groundwater, and partially removing dissolved salts. It also finds application in the extraction and concentration of useful substances in the food and pharmaceutical industries. Operating pressures for NF membranes are typically between 3.5-30 bar.

• Reverse Osmosis (RO) Membranes:
  Reverse osmosis is the finest membrane separation technology, effectively retaining all dissolved salts and organic compounds with molecular weights above 100, while allowing water molecules to pass through. RO membranes are widely used for desalination of seawater and brackish water, boiler feedwater, industrial and electronic-grade pure water, drinking water production, wastewater treatment, and specialized separation processes.

• Ultrafiltration (UF) Membranes:
  Ultrafiltration membranes can filter larger molecules and proteins between 1-20 nm. UF membranes allow small molecules and dissolved solids (such as inorganic salts) to pass through, while retaining colloids, proteins, microorganisms, and larger organic molecules. The operating pressure for UF membranes generally ranges from 1-5 bar.

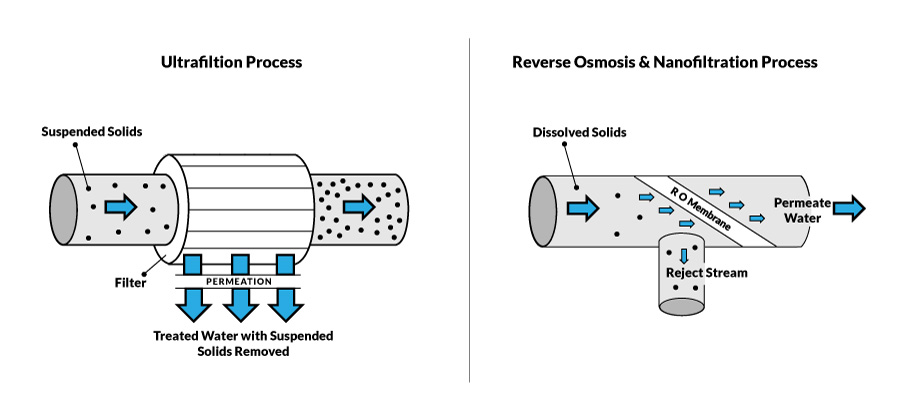

Differences Between Ultrafiltration, Nanofiltration, and Reverse Osmosis

• Ultrafiltration Membranes:
  Ultrafiltration is a pressure-driven membrane separation technique, where small solutes and solvents pass through the specially designed thin membrane, while larger molecules are retained. This results in partial purification of larger molecular substances.

• Nanofiltration:
  Nanofiltration is positioned between ultrafiltration and reverse osmosis, and is commonly used in water treatment plants or industrial desalting. The desalination rate of NF membranes is over 90%, while reverse osmosis membranes achieve desalination rates over 99%. However, NF can offer significant cost savings when water quality demands are not exceptionally high.

• Reverse Osmosis:
  Reverse osmosis uses pressure-driven filtration technology to separate dissolved salts and organic substances, and is widely used in various fields including research, pharmaceuticals, food and beverages, seawater desalination, and more. It is used for producing purified water, distilled water, and is also critical in industries like pharmaceuticals, electronics, and chemical processing.

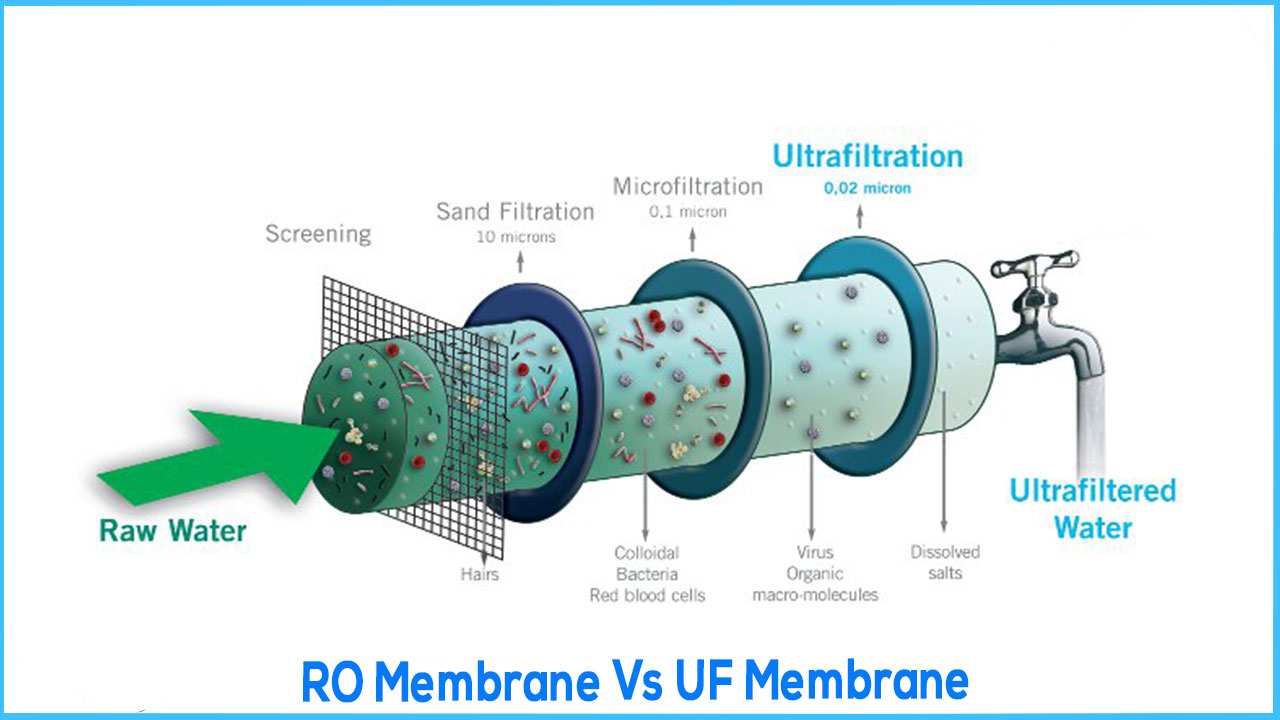

Comparison of Reverse Osmosis and Ultrafiltration Membranes

1. Water Quality Standards:
   The core difference between RO and UF is in their water quality standards. For example, for bacteria content, the UF membrane water treatment has a standard of 100 colonies per milliliter, while RO water treatment equipment has a more stringent standard of 20 colonies per milliliter.

2. Usage in Water Supply:
   Reverse Osmosis systems provide differentiated water supplies — pure water for drinking and concentrated water for washing. Ultrafiltration is typically used for washing water, although it can also be used as a high-purity water system for drinking when the feedwater is of good quality.

Advantages and Disadvantages of Ultrafiltration and Reverse Osmosis Membranes

• Advantages of Ultrafiltration:

• No need for pumps or electricity, eliminating electrical safety concerns.

• Fewer connections and low water pressure, which reduces the likelihood of malfunctions and leaks.

• Simple structure and cost-effective.

• Easy operation and low maintenance costs.

• No need for chemical additives.

• Mild experimental conditions, avoiding changes in temperature and pH, thus preventing denaturation and inactivation of biological macromolecules.

• Advantages of Reverse Osmosis:

• Effective at removing a wide range of harmful impurities from water, ensuring water safety.

• High quality water suitable for drinking and other sensitive applications.

• Reduces water hardness, preventing scale buildup in boiling containers.

• Suitable for handling special water quality events, with better overall water taste.

Applications of Different Membranes in Water Treatment

• Nanofiltration (NF):
  Used for drinking water production and deep purification, as well as wastewater treatment in applications like:

• A) Domestic sewage

• B) Textile and dyeing wastewater

• C) Leather industry wastewater

• D) Electroplating wastewater

• E) Pulp and paper industry wastewater

• Forward Osmosis (FO):
  Applications include seawater desalination, industrial wastewater treatment, and landfill leachate treatment.

• Reverse Osmosis (RO):

• Conventional water purification applications

• Urban wastewater treatment

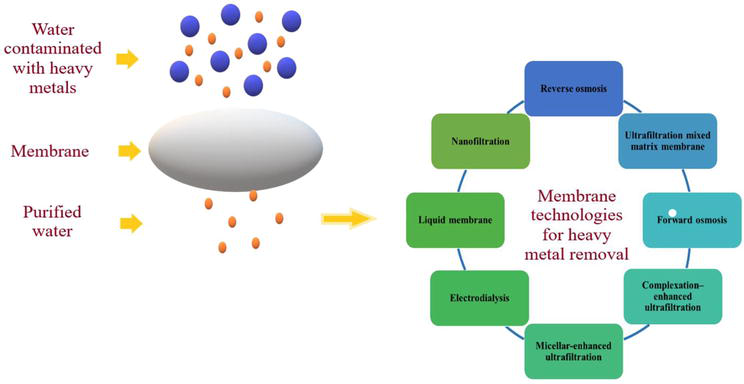

• Heavy metal wastewater treatment

• Oil-contaminated wastewater treatment
