Custom High-Pressure Filter Tank 6396 38-55T/H 6'' Flange FRP PE Liner
High-pressure resistant filter tank, a key equipment for industrial water treatment and material storage, becomes the first choice for many industries due to its customization advantages and excellent performance. Made of fiberglass reinforced plastic (FRP), it combines high strength and corrosion resistance, operating stably under high-pressure environments and adapting to various complex working conditions.
Core Parameters
This customizable high-pressure resistant filter tank has an imperial size of 6396, with a diameter and height of φ1600×2400mm. It adopts a Top&Bottom Opening 6" Flange design, with a Design Flow Rate of 38.0～55.0T/H, and can be adjusted according to needs to match different industrial scenarios.
Size(inch) | Diam&Height(mm) | Opening(inch) | Design Flow Rate(T/H) |
6396 | φ1600×2400 | Top&Bottom Opening 6" Flange | 38.0～55.0 |
Product Advantages & Customization Highlights
High-quality liner and opening design: The liner is made of food-grade PE, integrally formed through rotational and blow molding processes, with seamless connection and strong pressure resistance to ensure no leakage; 2.5"/4" are PPO threaded openings, 6" is aviation aluminum flange opening, and the built-in flange is fused with the liner during molding, further enhancing leak-proof effect.
Convenient features: The tank is lightweight, high-strength, and aesthetically pleasing, with a compact foot design for easy installation and transportation, reducing site adaptation difficulties.
Traceability and protection: Each tank has a unique ID code at the bottom for anti-counterfeiting identification and production responsibility tracing; equipped with a dust-proof cap to avoid impurity contamination during transportation and storage.
Flexible customization: Complete product specifications, supporting customization of different sizes and parameters according to needs to meet diversified industrial demands.

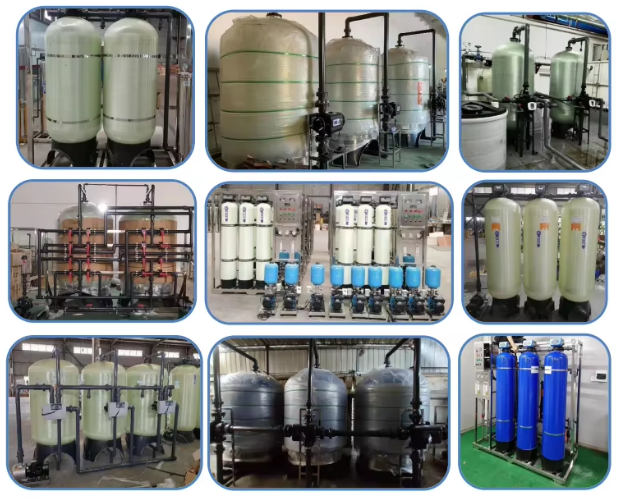

Industrial Application Case
A chemical enterprise's high-pressure reactor feed filtration system once had frequent leaks due to insufficient high-pressure resistance of equipment, with monthly shutdown maintenance costs exceeding 50,000 yuan and potential safety hazards. After introducing the custom high-pressure resistant filter tank, the 6" flange opening perfectly matched the reactor interface, and the design flow rate of 38.0～55.0T/H matched the production line demand. The food-grade PE liner resisted chemical corrosion, with no leakage under high-pressure conditions. The equipment operation stability increased by 90%, monthly maintenance costs reduced to 8,000 yuan, saving over 500,000 yuan annually. Meanwhile, it passed strict industry audits due to meeting safety standards.
