OZ Series Small Ozone Generators

All our ozone generators are based on the latest modern technologies, including Insulated Gate Bipolar Transistors (IGBT) and Modular Power Supply units. Ozone is generated by corona discharge in a tubular chamber with glass sleeve working as a dielectric. All key components are made of highly corrosionresistant materials, preventing their oxidation by ozone and prolonging system service life. System is also equipped with an anti-backflow device, preventing water from entering the unit.

Note – The appearance might change over time. Please contact us to get most recent images.

ADVANTAGES

Compact and easy to use;
Flexible ozone production rate；
Unique electrode and dielectric design provide maximum discharge efficiency;
Anti-backflow design prevents water backflow;
24/7 continuous operation;
High-quality stainless steel housing to avoid corrosion;
Air/oxygen intake; can be easily switched from one source to another;
No disinfection byproducts; intact water properties.

FEATURES

Most suitable for commercial ozone production below 45 g/hr;
Variable intake source – works on air or oxygen;
Corona discharge generation is one of the most energy efficient methods;
High-frequency, low voltage method provides best efficiency;
Uninterrupted power supply and independent oxygen supply (optional);
Air cooling;
Simple installation and maintenance.

COMPONENTS

Generation chamber;
Stainless steel housing;
Air compressor;
Ampermeter and voltmeter;
Air cooling system.

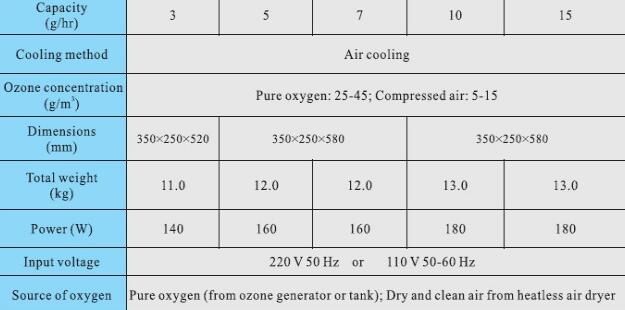

SPECIFICATION
