Axial Plunger High Pressure Pump

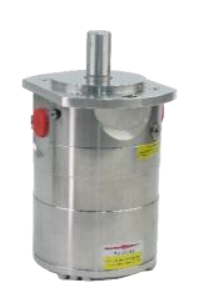

FG Water APC-T50–80 Axial Piston Pumps – 72–112 L/min at 1,500 rpm, up to 160 Bar
1. Product OverviewThe FG Water APC-T50–80 range provides high-pressure clean-water delivery for industrial washing, spraying, and specialized fluid systems.The Chapter 3 technical table lists APC-T50, APC-T63, APC-T72, and APC-T80, with flows from 72 to 112 L/min at 1,500 rpm.Each model supports m
1. Product Overview
The FG Water APC-T50–80 range provides high-pressure clean-water delivery for industrial washing, spraying, and specialized fluid systems.
The Chapter 3 technical table lists APC-T50, APC-T63, APC-T72, and APC-T80, with flows from 72 to 112 L/min at 1,500 rpm.
Each model supports maximum continuous outlet pressure of 160 bar and uses the pumped water for lubrication.
2. PRODUCT SPECIFICATIONS
| Parameter | APC-T50 | APC-T63 | APC-T72 | APC-T80 |
|---|---|---|---|---|
| Geometric Displacement | 50 cm³/rev | 63 cm³/rev | 70 cm³/rev | 80 cm³/rev |

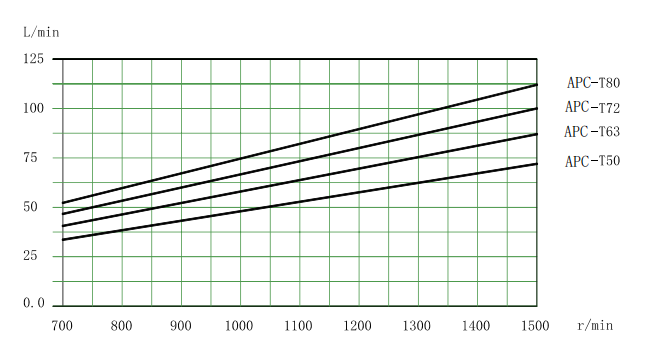

| Flow at 1,500 rpm | 72 L/min | 87 L/min | 100 L/min | 112 L/min |
| Equivalent Flow | 4.32 m³/h | 5.22 m³/h | 6.00 m³/h | 6.72 m³/h |
| Pump Weight | 31 kg | 31 kg | 31 kg | 31 kg |

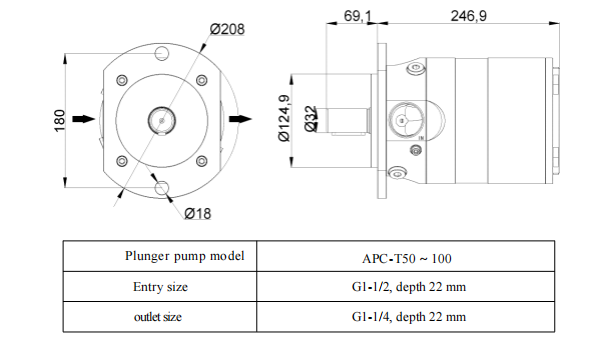

The dimensional section lists G1½″ inlet and G1¼″ outlet connections. Confirm the selected model’s drawing before installation.
3. OPERATING PARAMETERS
| Parameter | Specification |
|---|---|
| Outlet Pressure Range | 30–160 bar |
| Inlet Pressure Range | 3–6 bar |
| Continuous Speed Range | 700–1,800 rpm |
| Fluid Temperature | 2–50°C |
| Ambient Temperature | 0–50°C |
| Lubrication | Pumped water |
Select the drive and pressure-rated components for the actual duty point. Provide suitable inlet filtration, low-pressure protection, and overpressure protection.
Prevent dry running and verify fluid compatibility before operation.
4. Key Features & Benefits
Industrial flow capacity: Four models provide 72–112 L/min at the stated reference speed.
Continuous operation up to 160 bar: Supports high-pressure clean-water duties.
Oil-free lubrication: Eliminates lubricating oil handling.
Variable-speed adjustment: Supports flow regulation within the specified range.

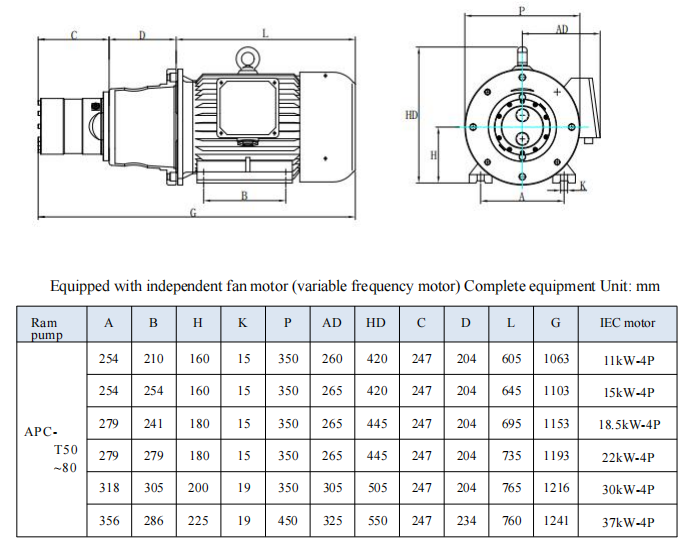

Flexible assembly options: Pump heads and motor-pump units can be configured for the project.

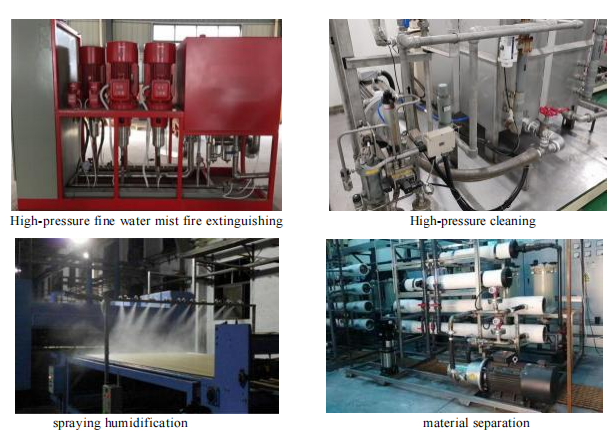

5. Key Applications
Industrial high-pressure cleaning.
Spray humidification and atomization.
Fine-water-mist systems, subject to system design and approval requirements.
Process-water pressurization.
Compatible material separation systems.
