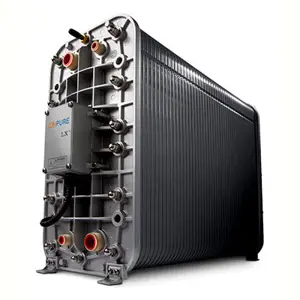

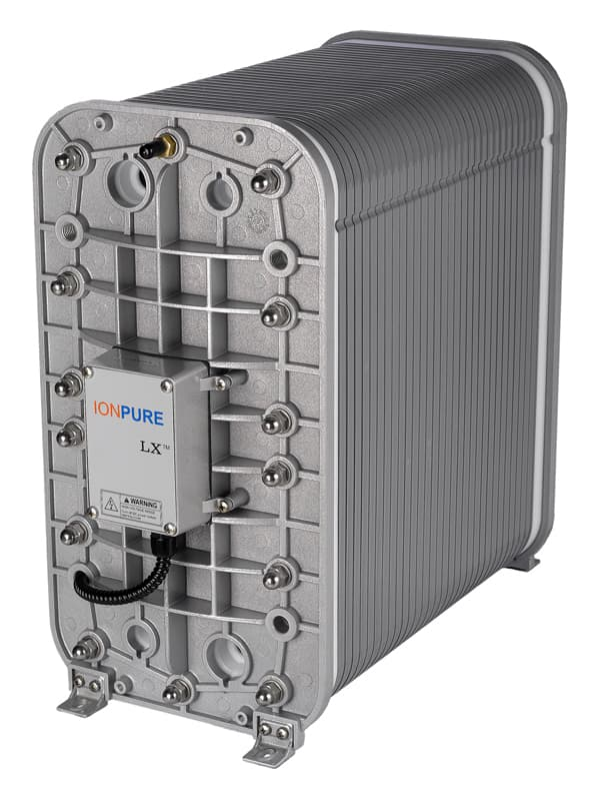

IONPURE IP-LXM55Z-5 CEDI Module – New Model, 9–10 m³/h Design Flow for Industrial High-Purity Water
1. Product OverviewThe IONPURE IP-LXM55Z-5 is an LX-Z series continuous electrodeionization (CEDI) module designed for industrial deionized water applications. It combines ion exchange media, ion-selective membranes, and electrical regeneration to provide a continuous supply of high-purity water wit
1. Product Overview
The IONPURE IP-LXM55Z-5 is an LX-Z series continuous electrodeionization (CEDI) module designed for industrial deionized water applications. It combines ion exchange media, ion-selective membranes, and electrical regeneration to provide a continuous supply of high-purity water without routine acid or caustic regeneration.
With a design product flow of 9.0–10.0 m³/h per module, the IP-LXM55Z-5 supports applications such as power plant boiler makeup water, hydrocarbon processing, chemical processing, and other industrial high-purity water requirements.
The LX-Z series features improved chlorine tolerance and resin-filled concentrate compartments for performance and ease of operation.
2. PRODUCT SPECIFICATIONS
General Specifications
| Parameter | Specification |
|---|---|
| Brand | IONPURE |
| Product Series | LX-Z |
| Model | IP-LXM55Z-5 |
| Ordering Part Number | W3T653071 |
| Product Type | Continuous Electrodeionization (CEDI) Module |
| Design Product Flow | 9.0–10.0 m³/h (40–44 gpm) |
| Minimum Product Flow | 3.1 m³/h (14 gpm) |
| Shipping Weight — Including Crate | 225 kg (496 lb) |
| Operating Weight | 190 kg (419 lb) |
| Drawing Dimension L | 1,062 mm (41.81 in.) |
| Drawing Dimension C | 887 mm (34.9 in.) |
Dimensional note: L and C are reference dimensions identified in the manufacturer’s drawing. Refer to the model-specific layout drawing for overall dimensions, mounting details, connections, and tolerances.
Typical Product Water Performance
| Parameter | Typical Performance |
|---|---|
| Product Water Resistivity | 17 MΩ·cm |
| Silica (SiO₂) Removal | 90–99%, depending on feed conditions |
Performance note: These values are typical performance figures, rather than unconditional guarantees. Actual product water quality should be evaluated using the IONPURE IP-Pro projection tool. Specific performance guarantees require confirmation from IONPURE.
Quality Assurance
CE marked.
Each module is factory tested to meet the manufacturer’s quality requirements.
Manufactured under ISO 9001 quality and ISO 14000 environmental management systems, as stated in the datasheet.
Wetted materials comply with NSF 14 and NSF 61 requirements.
3. OPERATING PARAMETERS
Module Operating Conditions
| Parameter | Specification |
|---|---|
| Water Recovery | 90–95%, subject to feed water quality and flow conditions |
| DC Voltage | 0–400 VDC |
| DC Current | 1.0–6.0 A |
| Feed Water Temperature | 5–45°C (41–113°F) |
| Inlet Pressure | 1.4–6.9 bar (20–100 psig) |
| Installation Environment | Indoors, protected from direct sunlight |
| Maximum Ambient Temperature | 45°C (113°F) |
Feed Water Requirements
| Parameter | Feed Water Specification |
|---|---|
| Feed Water Source | RO permeate |
| Feed Water Conductivity Equivalent — Including CO₂ and Silica | < 40 µS/cm |
| Total Hardness, as CaCO₃ | < 1.0 ppm |
| Total Chlorine, as Cl₂ | < 0.05 ppm |
| Silica, as SiO₂ | < 1.0 ppm |
| Iron, as Fe | < 0.01 ppm |
| Manganese, as Mn | < 0.01 ppm |
| Sulfide, as H₂S | < 0.01 ppm |
| Dissolved Organics — TOC, as C | < 0.5 ppm |
| pH | 4–11 |
Feed water conductivity equivalent
The operation manual defines feed water conductivity equivalent (FCE) as:
FCE (µS/cm) = Measured Conductivity (µS/cm) + 2.79 × CO₂ (ppm) + 2.04 × SiO₂ (ppm)
Measured conductivity alone is therefore insufficient to determine the total ionic load on the module.
Recovery Selection
The operation manual provides the following maximum allowable recovery conditions:
| Feed Hardness, as CaCO₃ | Feed Silica, as SiO₂ | Maximum Allowable Recovery |
|---|---|---|
| ≤ 0.2 ppm | ≤ 0.5 ppm | 95% |
| ≤ 1.0 ppm | ≤ 1.0 ppm | 90% |
Operating notes
Recovery selection must account for both hardness and silica concentrations.
A recovery of 95% may not be attainable at lower product flows because the minimum reject flow must be maintained.
During operation, maintain product outlet pressure approximately 0.1–0.3 bar (2–5 psi) above reject outlet pressure.
Use non-metallic piping adapters as specified in the installation manual.
Chemical regeneration is not required during normal operation; cleaning may still be needed if fouling occurs.
4. Key Features & Benefits
Continuous high-purity water production
Produces deionized water continuously without the regeneration downtime associated with conventional ion exchange systems.Industrial design flow
Provides a design product flow of 9.0–10.0 m³/h per module for industrial water treatment systems.Improved chlorine tolerance
The LX-Z design accommodates higher allowable chlorine levels than the standard LX-X range, while requiring feed total chlorine below 0.05 ppm.No routine acid or caustic regeneration
Electrical regeneration removes the need for routine resin regeneration chemicals and the associated neutralization system.Resin-filled concentrate compartments
Support module performance and ease of operation.Double O-ring sealing
Provides the manufacturer’s leak-free sealing design, subject to applicable warranty terms.Application-specific performance evaluation
The IP-Pro projection tool supports assessment of expected water quality under the actual feed and operating conditions.
5. Key Applications
The IONPURE IP-LXM55Z-5 CEDI module is designed for industrial high-purity and deionized water applications, including:
| Application | Typical Use |
|---|---|
| Power Generation | Deionized boiler makeup water |
| Hydrocarbon Processing | High-purity water for industrial processes |
| Chemical Processing | Deionized water for process requirements |
| Industrial RO/CEDI Systems | Further deionization of RO permeate |
| Other Industrial High-Purity Applications | Continuous production of water meeting application-specific purity requirements |
