R4040 End Entry FRP Membrane Housing - Customizable Multi-Pressure

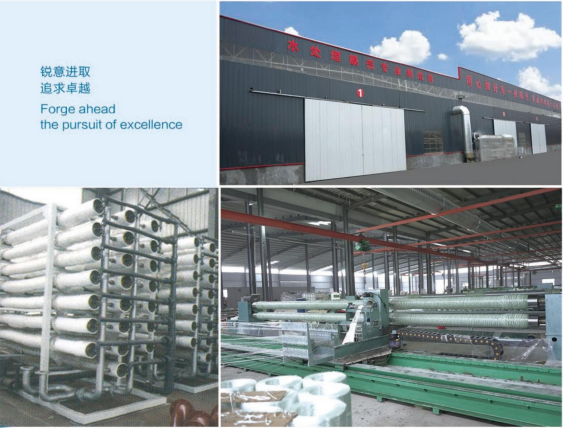

Wuxi Fenigal Science and Technology Co., Ltd. has supplied RO FRP pressure vessels for the water industry since 2010. With over 10 years of development, it has self-developed multi-axis rotating wire winding machines (enhancing product strength and surface flatness) and five systems for curing, grinding, and pressure testing. Annually producing 100,000 FRP membrane shells, it serves domestic and foreign customers with reliable products and good services.
Our Mission
Provide high-quality products to meet customers' personalized needs
A scientific quality assurance system is established, integrating quality control into every process from design to after-sales, ensuring reliable and superior products.
Standard production procedure of RO pressure vessel: Winding → Sanding → Lathing → Drilling → Hydro test → Painting → Package
Standard inspection and test plan of RO pressure vessel: Inspected per industrial standards, including raw materials (Fiberglass, Epoxy Resin, Anhydride), process tests, hydro-static tests (each vessel, 1.1 times working pressure for 3 minutes with no leakage), and final inspection.
Product features: Resistant to 25% sulfuric acid, 10% hydrofluoric acid; high temperature resistance up to 60/90°℃; fully adaptable to special media environments like strong acid, strong alkali, etc. Pressure level coverage: 300psi/450psi/600psi/800psi/1000psi/1200psi/1500psi.
R4040 End Entry membrane housing Product Selection:
Connection type: 4040 End Por
Pressure type: 300, 450, 600, 800, 1000PSI
Length type: 1 to 4 cores
Appearance color: Standard white, customizable as per customer requirements
Special specifications can be customized
Technical Requirements:
The manufacturing method of our FRP pressure vessel (membrane housing) complies with standard JC692-1998
Designed pressure: 300, 450, 600, 800, 1000PSI; working temperature range: -17℃-49℃
Membrane housing permeability test uses water pressure, with test pressure 1.5 times the standard pressure
Application fields: Electronics, electricity, metallurgy, chemical industry, medicine, food & beverage, sewage treatment, seawater desalination, etc.

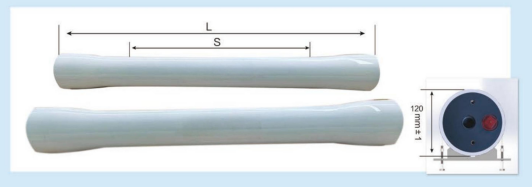

Main installation dimensions:
Working Pressure | Element(s) | L(mm) | S(mm) | Working Pressure | Element(s) | L(mm) | S(mm) |
300PSI450PSI | 1 | 1118 | 700 | 600PSI800PSI1000PSI | 1 | 1177 | 700 |
| 2 | 2135 | 1350 |
| 2 | 2193 | 1350 |
| 3 | 3152 | 1960 |
| 3 | 3210 | 1960 |
| 4 | 4168 | 1580*2 |
| 4 | 4226 | 1580*2 |
