DuPont™ IntegraTec™ XP 77 IP IG Ultrafiltration Module for Industrial Water, Wastewater Reuse and RO Pretreatment | High-Recovery, Fouling-Resistant PVDF Membrane

Product Description

Reliable, High-Recovery Ultrafiltration for Industrial and Municipal Water Treatment

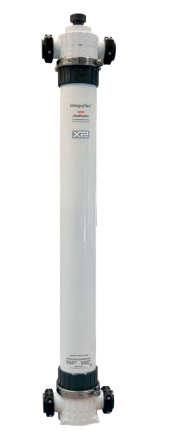

The DuPont™ IntegraTec™ XP 77 IP IG is a pressurized ultrafiltration module designed for industrial utility water treatment, industrial wastewater reuse, municipal wastewater filtration, and reverse osmosis pretreatment. Combining proven PVDF hollow-fiber technology with an installation-ready rack design, it delivers reliable contaminant removal, high operating recovery, and scalable performance for demanding water treatment systems.

The module features DuPont’s proven XP™ hydrophilic PVDF hollow fibers with a nominal pore size of 0.03 μm. This advanced membrane technology provides high removal of colloidal particles, bacteria, and viruses while offering excellent permeability, wettability, fouling resistance, and chlorine tolerance. The result is stable filtration performance, effective membrane cleaning, and dependable operation across a wide range of industrial and municipal feedwater conditions.

With 77 m² (829 ft²) of active membrane area, the XP 77 IP IG supports a maximum filtration flow of 8.5 m³/h (37.4 gpm) under the specified operating limits. Its outside-in, dead-end filtration configuration helps maximize productivity while maintaining a practical system footprint.

Engineered for Scalable, Efficient Operation

An innovative end-cap design enables direct module coupling in DuPont™ IntegraTec™ IP skids, simplifying rack assembly and allowing treatment capacity to be expanded as demand grows. High air-scouring tolerance supports efficient backwashing and high operating recovery, while the recommended maintenance-cleaning protocol helps reduce chemical consumption.

Constructed with robust wetted materials, the XP 77 IP IG is engineered for long service life, straightforward installation, and low routine maintenance. It is an effective ultrafiltration solution for facilities seeking to improve water reuse, protect downstream RO membranes, or increase treatment reliability without adding unnecessary system complexity.

Key Product Advantages

• Proven hydrophilic PVDF technology: Delivers excellent permeability, wettability, and stable filtration performance

• Superior fouling resistance: Helps maintain productivity under challenging feedwater conditions

• High chlorine tolerance: Supports effective membrane cleaning and long-term operation

• Reliable contaminant removal: Provides high removal of colloidal particles, bacteria, and viruses

• High operating recovery: Air-scour-assisted backwashing supports efficient water production

• 77 m² active membrane area: Maximizes filtration productivity within a rack-based system

• Scalable skid integration: Direct module coupling simplifies assembly and future capacity expansion

• Reduced chemical consumption: Optimized maintenance-cleaning procedures help lower chemical demand

• Effective RO pretreatment: Reduces particulate and microbial loading on downstream RO membranes

• Durable module construction: Robust materials support long service life in demanding applications

• Easy installation and maintenance: Designed to streamline commissioning and routine plant operation

Recommended Applications

• Industrial utility water treatment

• Industrial wastewater recycling and reuse

• Municipal wastewater filtration

• Reverse osmosis pretreatment

• Process water clarification

• High-recovery ultrafiltration systems

• Rack-mounted industrial water treatment plants

Key Technical Specifications

Product Summary

The DuPont™ IntegraTec™ XP 77 IP IG is an industrial ultrafiltration module for utility water treatment, industrial wastewater reuse, municipal wastewater filtration, and RO pretreatment. It uses a 0.03 μm hydrophilic PVDF hollow-fiber membrane to remove colloidal particles and achieve high log reduction of bacteria and viruses. With 77 m² of active membrane area, a maximum filtration flow of 8.5 m³/h, air-scour-assisted backwashing, and direct integration into scalable IP skids, the module provides a durable and efficient solution for high-recovery water treatment.

FAQ Content

What is the IntegraTec™ XP 77 IP IG used for?

The IntegraTec™ XP 77 IP IG is designed for industrial utility water treatment, industrial wastewater recycling and reuse, municipal wastewater filtration, and pretreatment before reverse osmosis systems.

What membrane technology does the XP 77 IP IG use?

The module uses hydrophilic PVDF hollow-fiber membrane technology with a nominal pore size of 0.03 μm. It is designed to provide high permeability, fouling resistance, chlorine tolerance, easy cleaning, and reliable contaminant removal.

What is the treatment capacity of the XP 77 IP IG?

The XP 77 IP IG has 77 m², or 829 ft², of active membrane area. Its specified maximum filtration flow is 8.5 m³/h, or 37.4 gpm. Actual design flow depends on feedwater quality, operating conditions, and the treatment objectives of the system.

Why is the XP 77 IP IG suitable for RO pretreatment?

Its ultrafiltration membrane reduces colloidal particles, bacteria, viruses, and other suspended contaminants before water enters an RO system. This helps reduce the contaminant load on downstream RO membranes and supports more stable system operation.

Can the XP 77 IP IG be used in expandable water treatment plants?

Yes. Its optimized end-cap design enables direct coupling in DuPont™ IntegraTec™ IP skids, supporting simple rack assembly and straightforward capacity expansion.

How does the XP 77 IP IG support efficient operation?

The module combines a large active membrane area with high air-scouring tolerance, liquid backwashing, and an optimized maintenance-cleaning protocol. These features support high operating recovery, lower chemical consumption, and reduced routine maintenance.
