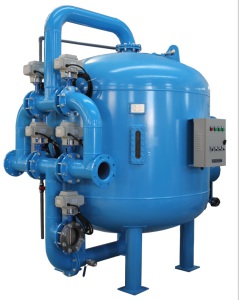

Silica Sand Filter

Silica Sand FilterSand filters are used to remove suspended solids from water and wastewater. Because they have one layer of filter media, sand filters remove only relatively large solids (normally in the range of 40 micron and larger). The effective size of each granule of

Category: Media Filters

Sand filters are used to remove suspended solids from water and wastewater. Because they have one layer of filter media, sand filters remove only relatively large solids (normally in the range of 40 micron and larger). The effective size of each granule of sand typically varies from 0.35mm - 1.2mm. Larger granules yield coarser filtration. Finer granules yield finer filtration.

Irrigation water
Storm water
Cooling water
Swimming pool water
Water in fountains and other water features
Removing suspended solids smaller than 40 microns requires filters with either two or three layers of filter media. These are referred to as dual-media filters or multi-media filters. When sized properly and with the correct configuration of filter media, these filters can remove suspended solids as small as 5 micron. Units are skid-mounted, factory assembled, wired, and tested, and delivered ready for installation. Piping, valves, filter media, pressure gauges and accessories are included with filter systems. Solar power, media air scour, and rinse cycle are available as options. Filter systems are engineered to require little maintenance.A separate source of water supply or a pump for backwash are seldom needed.

The characteristics of sand filtration sand filter system

1. Manual or automatic control is available;

2.Simple, uniform and reliable water distributor.

3. Finished water collector is with strong working strength and long service life;

4. Easy installation. Just to connect the water inlet, water outlet and wastewater pipe for working.

5. Less water consumption for backwash: homogeneous quality filtration material to prolong the backwash circle and to reduce the water consumption greatly .

6. Backwash cycle is extended and the total backwash water consumption is greatly reduced;

7. High backwash efficiency: An advanced water collector is used, ensuring efficient backwash effect to
get clean water output.

Specifications:

Model	Tank size (D)*(H)	Inlet and outlet (mm)	Filter area (mm)	FLOW RATE (m3/hr)
SF-800	800*960mm	50	0.5	15-25
SF-1000	1000*1200mm	50	0.79	23-39
SF-1200	1200*1400mm	80	1.13	33-55
SF-1400	1400*1600mm	100	1.54	45-75
SF-1600	1600*1800mm	100	2.01	60-100
SF-1800	1800*1950mm	150	2.54	75-125
SF-2000	2000*2150mm	150	3.14	95-155
SF-2200	2200*2250mm	150	3.80	115-190
SF-2400	2400*2300mm	150	4.52	130-210
SF-2600	2600*2400mm	150	5.30	145-225
SF-2800	2800*2500mm	200	6.15	155-240
SF-3000	3000*2600mm	200	7.00	170-255
