Rogen-L

Rogen-LROL-INdustRIaLREvERsEOsmOsIssystEm200,000~900,000GPdROLSeriesCommercialReverseOsmosisSystemCapacity:200,000~900,000GPDDesignedtoproducelowdissolvedsolidswaterfrom

Category: Rogen Series BWRO
Rogen-L

ROL - INdustRIaL REvERsE OsmOsIs systEm 200,000 ~ 900,000 GPd

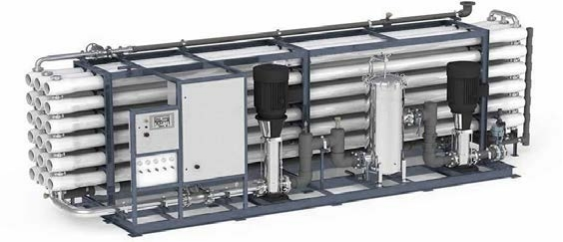

ROL Series Commercial Reverse Osmosis System

Capacity: 200,000~900,000GPD

Designed to produce low dissolved solids water from tap or well water, these systems use high efficiency reverse osmosis membranes. The product water is used in applications such as semiconductor, boiler

feed, pharmaceutical, municipal, water reuse, food processing, bottling, and a wide variety of other applications.


** Product pictures are only for reference. Final products may vary based on actual design requirement.

standard Features

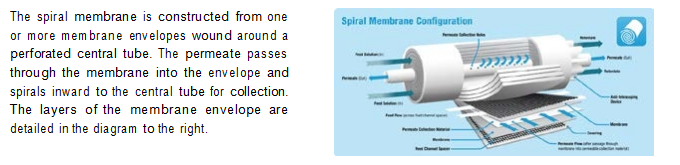

• 8”TFC spiral wound membranes

• Stainless steel multi-stage pump with TEFC motor • FRP membrane housings

• 5 micron cartridge prefilter

• PLC based control panel

• Programmable time delay and set points

• HMI screen

• Motor starter

• Low pressure switch

• High pressure switch

• Liquid filled pressure gauges

• Permeate conductivity monitor

Permeate & concentrate flow meters

available Options

• Remote monitoring

• Feed water conductivity monitor

• Membrane cleaning skid

• Product tank level switch

• Feed pH monitor with sensor

• Feed ORP monitor with sensor

• Water and hour meters

• Chemical dosing systems

• Media prefiltration systems

• Ozonation and UV sterilization systems • Water softeners

• Skid mounted with pre or post treatment • Containerized RO systems

the ideal applications for brackish reverse osmosis systems include: ROL Series Commercial Reverse Osmosis System Capacity: 200,000~900,000GPD

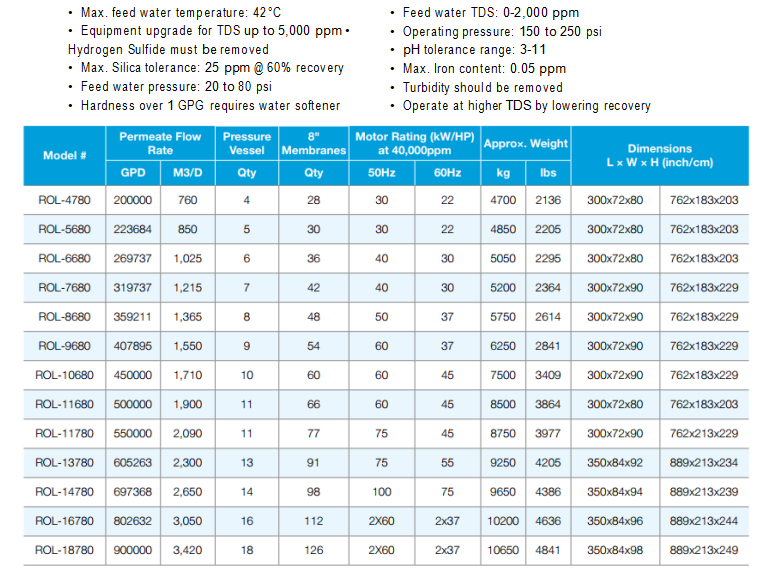

Operation specifications



Voltage Codes:

335 = 380v, 3ph, 50hz (all ROLrange)

435= 400/415v, 3ph, 50hz (all ROLrange)

436= 460v, 3ph, 60hz (all ROLrange)
