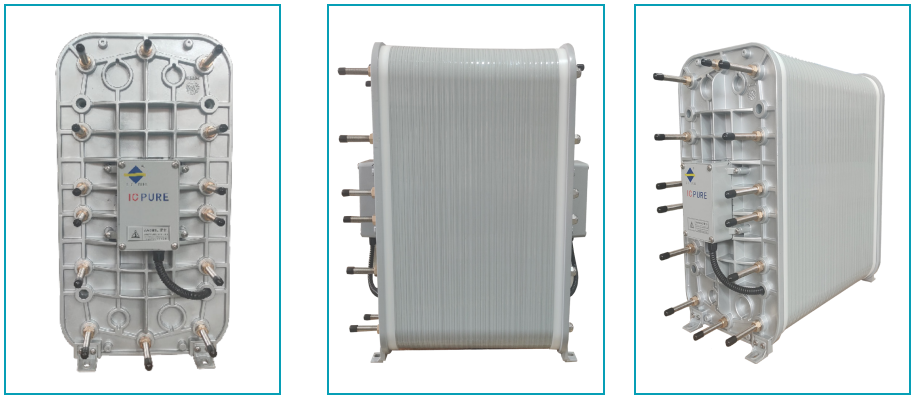

High-Temperature Resistant EDI Membrane Stack - LCX - H Efficient Eco-Friendly Water Treatment

The high-temperature resistant EDI Membrane Stack - LCX - H is an advanced water treatment equipment, specially designed for wastewater treatment in the process of electronic feather tube cutting. EDI (Electrodeionization) membrane stack is a process that removes ions from water through electrochemi

Category: China EDI stacks
High-Temperature Resistant EDI Membrane Stack - LCX - H Efficient Eco-Friendly Water Treatment

The high-temperature resistant EDI Membrane Stack - LCX - H adopts an efficient membrane stack design, enabling efficient ion removal. Its optimized membrane stack structure can maximize the utilization rate of the membrane and reduce energy consumption. At the same time, the membrane material is made of high-quality materials, with excellent oxidation resistance and corrosion resistance, which can ensure the stable operation and long service life of the equipment even under high-temperature conditions.

The high-temperature resistant EDI Membrane Stack - LCX - H is easy to operate. Operators only need to make simple operation adjustments according to the requirements of the equipment. The equipment is also equipped with an automatic control system, which can realize full automatic operation and reduce labor input. In addition, the equipment has an intelligent monitoring function, which can monitor the operation status of the equipment in real time, find and solve problems in time, and ensure the normal operation of the equipment.

The high-temperature resistant EDI Membrane Stack - LCX - H has efficient water treatment effect. It adopts efficient ion exchange technology, which can remove a variety of ions in water, such as sodium ions, magnesium ions, calcium ions, etc. The design and material selection of the membrane stack enable it to effectively remove ions, reduce residual concentration, and meet the requirements of water quality standards. At the same time, the equipment also has a strong processing capacity, which can handle a large amount of wastewater, ensuring the timely treatment and discharge of wastewater.

The high-temperature resistant EDI Membrane Stack - LCX - H also has the characteristics of environmental protection. Firstly, the equipment has low energy consumption, which reduces energy consumption and the adverse impact on the environment. Secondly, the equipment does not use any chemicals in the process of wastewater treatment, avoiding environmental pollution caused by the use of chemicals.The equipment can reuse wastewater, reducing the waste of water resources and the impact on the natural environment.

In conclusion, the high-temperature resistant EDI Membrane Stack - LCX - H is a water treatment equipment with excellent performance, suitable for wastewater treatment in the process of electronic feather tube cutting. The equipment has the advantages of high efficiency, environmental protection, low energy consumption and high temperature resistance, which can effectively remove ions in water and ensure the timely treatment and discharge of wastewater.

High Temperature LCX-H Series EDI Module Specifications


型号(MODEL)

流量范围 (m³/h)(Flow Range)

工作电流(0-6A)(Operating Current)

操作电压(VDC)(Operating Voltage)

最大功率 (KW/H)(Maximum Power)

LCX-05H

0.4-0.6

2.5

0-200

1.2

LCX-10H

0.8-1.2

2.5

0-200

1.2

LCX-20H

1.8-2.3

2.5

0-340

2

LCX-30H

2.8-3.2

2.5

0-340

2

LCX-38H

3.8-4.2

2.5

0-550

3

LCX-45H

4.8-5.3

2.5

0-550

3

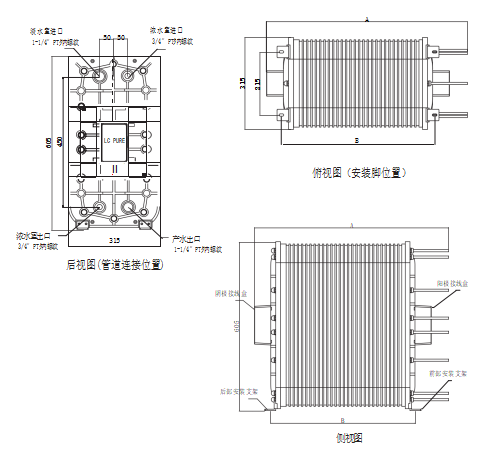

型号(MODEL)

运输重量 (KG)(Operating Weight)

外形尺寸高 (mm)(Height)

外形尺寸宽(mm)(Width)

总长 A (mm)(Overall length A)

左右定位中心距(mm)(Left and Right Positioning Holes)

前后定位中心距 B (mm)(Front and Back Positioning Holes B)

LCX-05H

40

605

315

270

215

205

LCX-10H

50

605

315

370

215

290

LCX-20H

75

605

315

560

215

415

LCX-30H

100

605

315

735

215

670

LCX-38H

125

605

315

840

215

725

LCX-45H

140

605

315

945

215

835

型号(MODEL)

淡水进口 / 出口接头 (内螺纹)(Pure Water Inlet/Outlet)

浓水进口 / 出口接头 (内螺纹)(Concentrated Water Inlet/Outlet)

LCX-05H

1-1/4″ PT 内螺纹

3/4″ PT 内螺纹

LCX-10H

1-1/4″ PT 内螺纹

3/4″ PT 内螺纹

LCX-20H

1-1/4″ PT 内螺纹

3/4″ PT 内螺纹

LCX-30H

1-1/4″ PT 内螺纹

3/4″ PT 内螺纹

LCX-38H

1-1/4″ PT 内螺纹

3/4″ PT 内螺纹

LCX-45H

1-1/4″ PT 内螺纹

3/4″ PT 内螺纹
