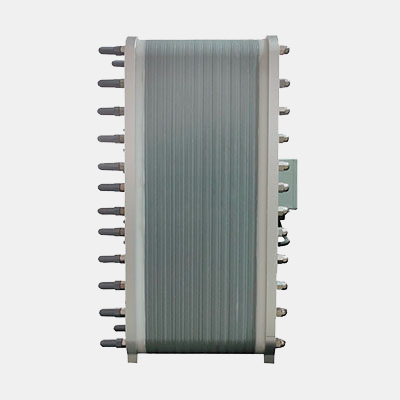

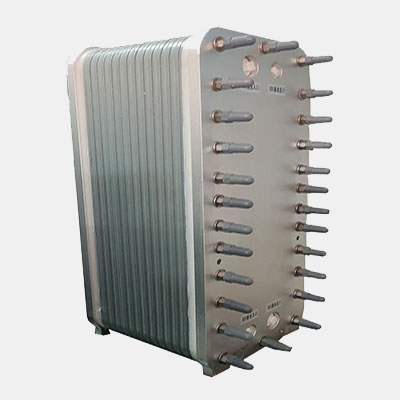

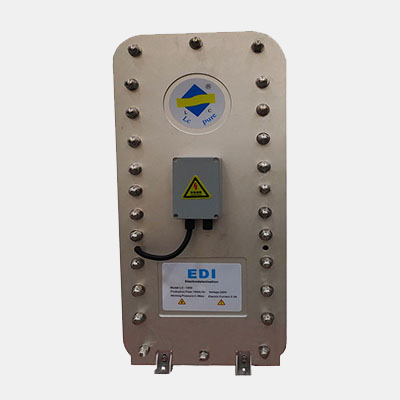

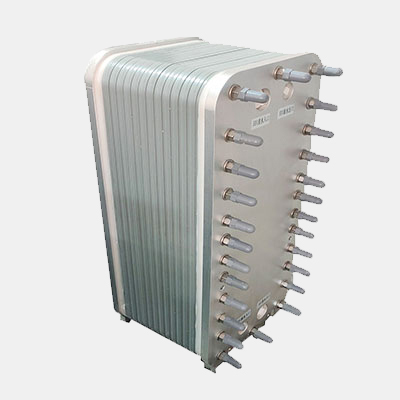

LC PURE Industrial General-Purpose LC-1000 EDI Module An Efficient Industrial Pure Water Solution for Water Production
In the field of industrial water treatment, stable and efficient pure water preparation equipment is an important guarantee for the smooth progress of production. The LC PURE Industrial General-Purpose LC-1000 EDI module, with its excellent performance, has become the ideal choice for many enterprises, providing high-quality pure water support for industrial production.
The LC-1000 EDI module integrates many highlights of EDI technology and shows significant advantages in industrial applications:
Continuous and stable water production: It can continuously produce high-purity water without the need for complex regeneration operations like traditional mixed beds, reducing downtime caused by regeneration, ensuring continuous production, and lowering the demand for standby equipment.
Environmental protection and economy: No acid or alkali is used in the entire operation process, avoiding the problem of discharge and treatment of waste acid and alkali, which is in line with the concept of green environmental protection. Moreover, concentrated water can be directly reused, and the discharge of electrode water is small, effectively reducing operating costs.
Convenient installation and small footprint: The installation conditions are simple, and the floor area is small, which can flexibly adapt to different industrial site environments, especially suitable for production workshops with limited space.
Stable and reliable water quality: The quality of the produced water is stable, without the common water quality fluctuations of ordinary mixed beds, and can stably reach 5-18 MΩ·cm, which can meet the strict requirements of industrial production for high-purity water.
| Parameter Category | Specific Value |
|---|
| Standard water production flow | 1m³/h |
| Maximum water production flow | 1.2m³/h |
| Minimum water production flow | 0.8m³/h |
| Operating voltage | 0-200VDC |
| Operating current | 2.5A (0-6A range) |
| Number of membrane pairs | 12 |
| Operating net weight | 66KG |
| Maximum power | 1.2KW/H |
| Fresh water inlet/outlet | DN25 PVC |
| Concentrated water inlet/outlet | DN20 PVC |
| Total length B (mm) | 370 |
| Center length A (mm) | 260 |
| Front and rear positioning length C (mm) | 290 |
| Overall height (mm) | 680 |
| Overall width (mm) | 300 |
| Left and right positioning (mm) | 14.5 |
A medium-sized chemical enterprise needs a large amount of high-purity water for cleaning reaction kettles and raw material preparation in the production process of its fine chemical products, which has extremely high requirements for the stability and purity of water quality. The previously used water treatment equipment not only had difficulty meeting the production water demand in terms of water production efficiency but also had large fluctuations in water quality, affecting product quality.
After introducing the LC PURE Industrial General-Purpose LC-1000 EDI module, the situation has improved significantly. The standard water production flow of this module is 1m³/h, and the maximum can reach 1.2m³/h, which can meet the production water demand of the enterprise. Its stable water production quality ensures thorough cleaning of the reaction kettle and accurate raw material preparation, and the product quality has been significantly improved. At the same time, since no acid-base regeneration is needed, the related material costs and environmental protection treatment costs are reduced. The equipment is also relatively easy to install and was soon put into normal use, bringing good economic benefits to the enterprise.
With its efficient, stable and environmentally friendly characteristics, the LC PURE Industrial General-Purpose LC-1000 EDI module plays an important role in the field of industrial pure water preparation, providing reliable pure water guarantee for various industrial productions.
