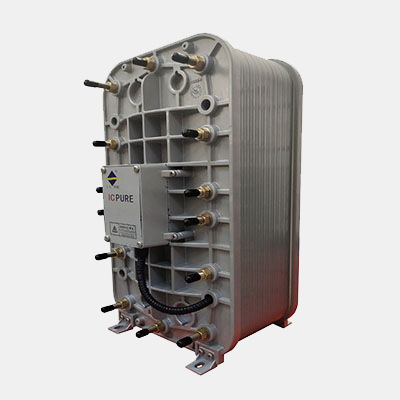

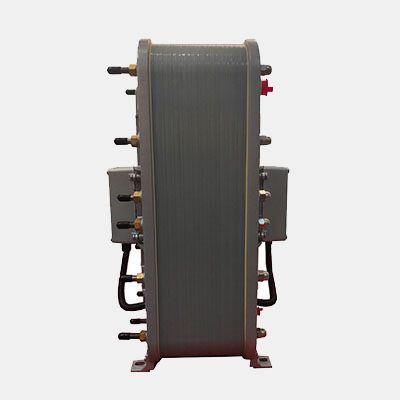

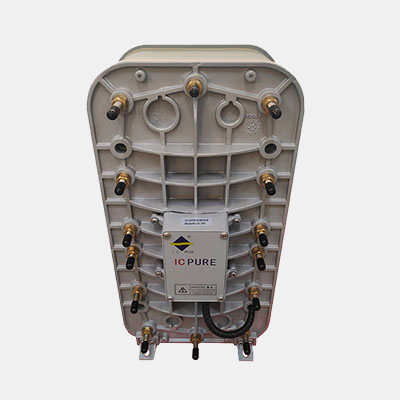

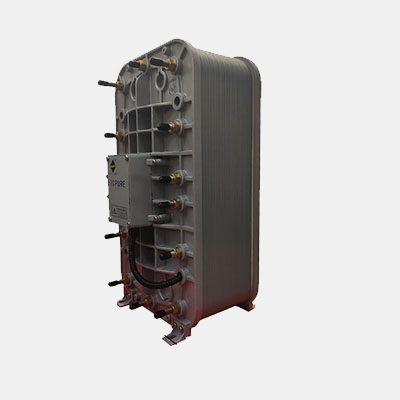

LCX-10T Industrial EDI Module 0.8-1.2m³/h Ultra-pure Water for Small-Scale Industries
As a versatile model in the LCX series, the LCX-10T is designed for medium-small flow industrial scenarios, delivering 0.8-1.2m³/h of stable ultra-pure water. Its core advantages include:
Continuous High-Purity Output: Leverages Electrodeionization (EDI) technology to produce water with resistivity ≥15MΩ·CM, no acid-base regeneration needed—reducing operational hassle and environmental impact.
Space-Efficient Design: Compact structure (605×315×370mm) with standardized installation, ideal for factories or workshops with limited space.
Cost-Saving Operation: Low power consumption (1.2KW/H) and 85-95% water recovery rate; concentrate water can be directly reused, cutting water and energy costs.
Easy Maintenance & Expansion: Supports single-module servicing by redistributing flow to other stacks, minimizing downtime. Modular design allows future capacity expansion.
| Parameter | Details |
|---|
| Flow Range | 0.8-1.2m³/h |
| Operating Current | 2.5A (0-6A adjustable) |
| Operating Voltage | 0-200VDC |
| Max Power | 1.2KW/H |
| Shipping Weight | 50KG |
| Dimensions (H×W×Total Length A) | 605×315×370mm |
| Left-Right Positioning Center Distance | 215mm |
| Front-Back Positioning Center Distance B | 235mm |
| Fresh Water Inlet/Outlet | 1-1/4″PT Male Thread |
| Concentrate Inlet/Outlet | 3/4″PT Male Thread |
| Inlet Water Requirement | RO product water (≤5μS/cm) |
| Product Water Quality | ≥15MΩ·CM |
The LCX-10T integrates ion exchange resin with a DC electric field to purify water:
Ion exchange resins adsorb cations and anions from the inlet water.
Under the DC electric field, adsorbed ions migrate through specific membranes (cations through cation membranes, anions through anion membranes).
Fresh water chamber output: Ultra-pure water with reduced ion concentration; concentrate water is reusable, ensuring efficient resource utilization.
Perfect for small to medium-scale industrial scenarios requiring stable ultra-pure water:
Small photovoltaic module cleaning
Laboratory pilot production lines
Fine chemical ingredient preparation
Electronic component washing
Vehicle urea intermediate processing
For businesses needing 0.8-1.2m³/h ultra-pure water, the LCX-10T offers a balance of performance, cost, and convenience. It replaces traditional mixed beds with eco-friendly, low-maintenance EDI technology—ideal for upgrading your water treatment system.
